SJNFL系列六模七模加長型螺帽成型機
更新時間：2024-04-15 11:12:00點擊次數：823次
相關介紹

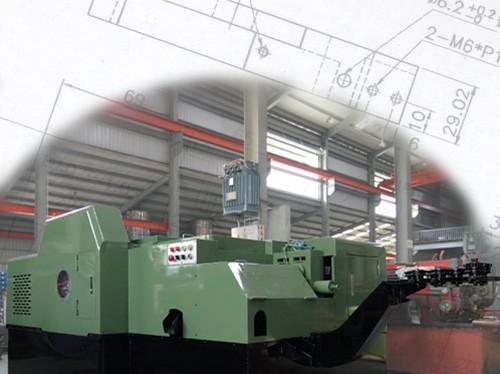

六模加長型緊固件、零件冷鐓成型機
Features Of 6S Long Stroke Fasterner、Part Former
主要技術參數 Main Technical Parameters
| 參數/型號SPECIFICATION/MODEL | 單位UNIT | 11B6SL | 14B6SL | 17B6SL | 19B6SL | 24B6SL | 33B6SL | 41B6SL | |
| 模數FORGING STATIONS | 6 | ||||||||
| 切斷直徑CUT-OFF DIA.MAX. | mm | 11 | 14 | 16 | 19 | 24 | 30 | 40 | |
| 切斷長度CUT-OUT LENGTH MAX. | mm | 15 | 25 | 30 | 30 | 30 | 36 | 52 | |
| 后托頂出長度KICK-OUT LENGTH MAX. | mm | 30 | 40/60 | 50 | 65/80 | 65/80 | 80 | 80 | |
| 母模中心距離DIES PITCH | mm | 50 | 60 | 70 | 80 | 100 | 140 | 165 | |
| 主滑板行程RAM STROKE | mm | 90 | 120 | 140 | 160 | 200 | 220 | 260 | |
| 壓造力FORGING POWER | Ton | 55 | 100 | 120 | 160 | 250 | 400 | 500 | |
| 每分鐘產能MAX. OUTPUT | pcs/min | 100 | 90 | 80 | 70 | 65 | 60 | 55 | |
| 主電機MAIN MOTOR | KW | 11 | 18.5 | 22 | 45 | 55 | 75 | 135 | |
| 機械重量APPROX.WT. | KG | 4.5 | 8.5 | 12 | 19 | 28 | 48 | 80 | |
